ZR-96 BashingBead Lysis Rack (Barcoded)

S6002-96-4 / S6002-96-5


ZR-96 BashingBead Lysis Rack (Barcoded)

Cat # Name Size Price Quantity
S6002-96-4 ZR-96 BashingBead Lysis Rack (Single barcoded Tubes) 1 x 96 €244,30
- +
S6002-96-5 ZR-96 BashingBead Lysis Rack (Double barcoded Tubes) 1 x 96 €244,30
- +

Volume Order Inquiry

Documents

ZR-96 BashingBead Lysis Rack (Barcoded)

Highlights
  • Barcoded for rapid accessioning and sample tracking
  • Superior leak resistance prevents cross contamination
  • Validated for complete lysis of tough-to-lyse bacteria & fungi
Description

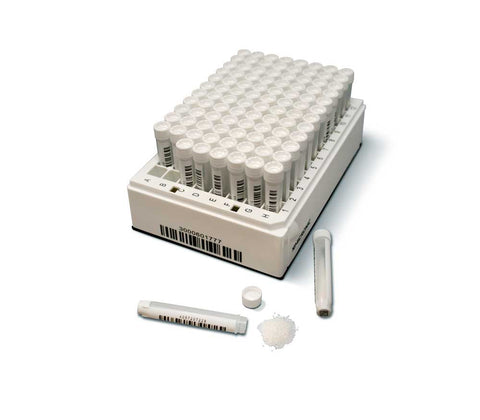

The ZR-96 BashingBeadTM Lysis Rack (Barcoded) is a 96-well microbial lysis rack which enables complete homogenization/lysis of tough-to-lyse bacteria, fungi, yeast, and other cells from a variety of sample types including feces, soil, sludge, saliva, swabs & other biological samples, making it ideal for high-throughput microbial community profiling and pathogen detection by mechanical bead beating based nucleic acid purification systems on automated platforms. Designed to be used for microbial lysis prior to nucleic acid purification with the ZymoBIOMICS 96 MagBead DNA Kit (D4306), the ZymoBIOMICS 96 DNA Kit (D4307) or equivalent.

Barcode All tubes feature a laser-etched 2D barcode and optional 1D side barcode for convenient sample tracking.
Closure Type Triple screw thread with septum provides a resistant barrier to prevent cross contamination.
Color Clear with or without barcode
Fill Each 1.0 mL tube contains a blend of ZR BashingBeads for optimal sample lysis
For Use With (Application) Microbial lysis during nucleic acid purification
L x W x H 128.0mm x 85.0mm x 57.0mm
zAdditional Processing Equipment Bead beater/bead homogenizer and optional screw cap capper/decapper

Throughput Nucleic Acid Type Kit Name Cat. #
Automated DNA ZymoBIOMICS 96 MagBead DNA Kit
D4306
RNA ZymoBIOMICS MagBead RNA
R2137
DNA/RNA
ZymoBIOMICS MagBead DNA/RNA 		R2135
Manual DNA
ZymoBIOMICS 96 DNA Kit
D4307
RNA
ZymoBIOMICS RNA Miniprep Kit
R2001
DNA/RNA
ZymoBIOMICS DNA/RNA Miniprep Kit
R2002

The recommended final volume for bead beating is 800 µL.

128.0mm x 85.0mm x 57.0mm. Ensure that the buckets on the rotor have sufficient clearance to accommodate this combo.

  • For mechanical bead beating:
    • A Bead beater/bead homogenizer that accommodates Deep Well(96) Plate(s):(L x W x H) 128.0mm x 85.0mm x 57.0mm.
    • A stabilizing snap-on Baseplate is included to immobilize tubes during the bead beating process so that the rack lid can remain attached.
  • For Capping/Decapping:
    • Automated screw cap capper/decapper, such as the 96-channel Micronic 96 Screw Cap Recapper CS700 or semi-automated (8-channel) Cap Recapper CS500. A Screwdriver tool (Cat. No. 3DP-1004) is included for manual de-capping.

Yes, this rack follows ANSI/SLAS footprint specifications, ensuring that it is compatible with all major automation technologies. Our extraction kit protocols include an “automation guide” for users to script the protocol themselves and our technical support staff are available for any automation help, troubleshooting, and advice. Please do not hesitate to contact us at automation@zymoresearch.com.

High density silica beads

Vapor phase Liquid Nitrogen to +140ºC; Made from Polycarbonate.
